Hydraulic Compactor
EPS Compactor Hercules Series
GREENMAX Hercules Series Hydraulic Compactor is an EPS recycling machine specialized in compressing waste EPS packaging, EPS DUST, PU, EPP, etc. into blocks by hydraulic pressure without heating.
Equipped with high-efficient automatic hydraulic system, the waste EPS can be crushed in the storage bin of the GREENMAX Heracles Series EPS Compactor and then compacted into dense and uniform blocks with a volume reduction ratio of 70:1, greatly reducing the volume of waste EPS,
Therefore saving storage and transportation costs. In particular, Heracles Series Hydraulic Compactor has the benefits of both the energy saving of our Apollo Series Cold Screw Compactor and the high density of our Mars Series Melting Machine.

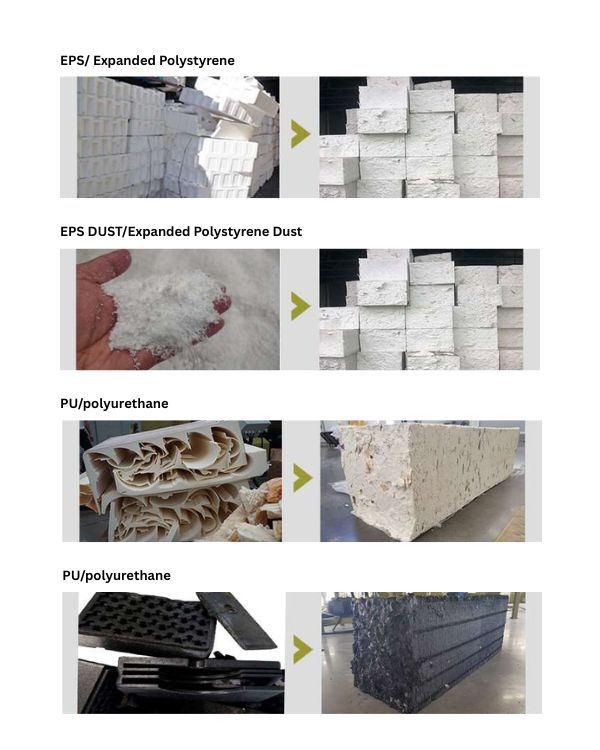

Applicable Materials
- EPS/ Expanded Polystyrene
- EPS DUST/Expanded Polystyrene Dust
- PU/polyurethane
- EPP/Expanded Polypropylene
GREENMAX Foam Hydraulic Compactor Advantages
1. True Throughput
GREENMAX Hydraulic Compactor H-C300 is with true throughput of 200~300kg/hour.
2. No heating, Lower power consumption
The total consumption under full load is 24.5kw. The real consumption is around 17kw.
3. Low Labor
The whole system is very intelligent, less one labor involved during operation. When the hopper is full, the system can be automatically operating.
4. High density
The technology of hydraulic compactor is combining screw transport and hydraulic densification. The density of compacted blocks can achieve up to 300-380kgs/m3, very close to the density of hot melted foam.
5. Multifunction
GREENMAX hydraulic compactor can deal with almost all of plastic foam, such as EPS, EPP, PU.
6. Customized design Upon your needs
The footprints of the pre-crusher, hydraulic compactor and hopper system can be flexibly designed and located according to your plant size.
Why Choose the GREENMAX Hydraulic EPS Recycling Machine?
-
Why Choose the GREENMAX Hydraulic EPS Recycling Machine?
GREENMAX Hydraulic Series EPS Recycling Machine compares well on price to its competitors in the Australian market when you compare on key point such as:
- True demonstrated throughput – Converts to labour cost
- Relative power – Not power efficiency but total grunt to process reliably
- Quality of electrical componentry, machining, welding and motor/gearbox combinations.
- Robustness of construction, I.e. machine weight, material thickness, hydraulic press stability, strength of chain drive.
- Highest reliability in the world with common parts stocked in Australia.
- Maintenance packages available at competitive rates.
-
- Technical data
PARAMETER NAME PARAMETER DESCRIPTION ITEM H-C300 Total Power Consumption 24.5kw Hydraulic Press Power 11kw Working alternatively Feeder Power 11kw Crusher Power 2*4kw/2*5.5kw/2*7.5kw Customized, depending on the material’s density and dimension Blower Power 7.5kw Production Capacity 200kg/h-300kg/h (depends on different kinds) Varies depending on the material’s density and humidity
EPS Compression Density 300kg/h-380kg/h (depends on different kinds) Varies depending on the material’s density and humidity
EPS Compression Dimension 390*420(w/h)mm Feed Hopper Door 1200*800（l/w）mm Square Meters 8162*4355*4430(l/w/h)mm Weight Approximately 3.5t
