EPS Recycling System

EPS recycling machine

The EPS recycling system is a large-scale equipment launched by GREENMAX specifically for recycling EPS beads. The ultimate recycling purpose of the EPS recycling system is to first break waste EPS into EPS beads, which are the “monomers” that make up EPS, and then separate the reusable EPS beads and non-reusable EPS through the EPS recycling system. The beads are separated, and finally the recycled EPS beads are mixed with new EPS materials to create new EPS products.

Machine dimensions

1750x780x2012mm

Power Consumption

15kw

Compression Ratio

90:1

Capacity

25-30m³/h

Efficiently Manage Waste

Take the first step toward a cleaner, more cost-effective business environment by requesting a free, no-obligation quote today. At Compact, we specialize in helping businesses efficiently manage waste through tailored compaction and recycling solutions that significantly reduce disposal frequency and declutter your workspace. Whether you are looking to lower your operational costs, reduce the volume of your waste, or streamline your recycling logistics, our team will provide a transparent, competitive proposal designed to fit your specific requirements. Contact us now to discover how an optimized waste management strategy can deliver an immediate return on investment and a greener footprint for your company.

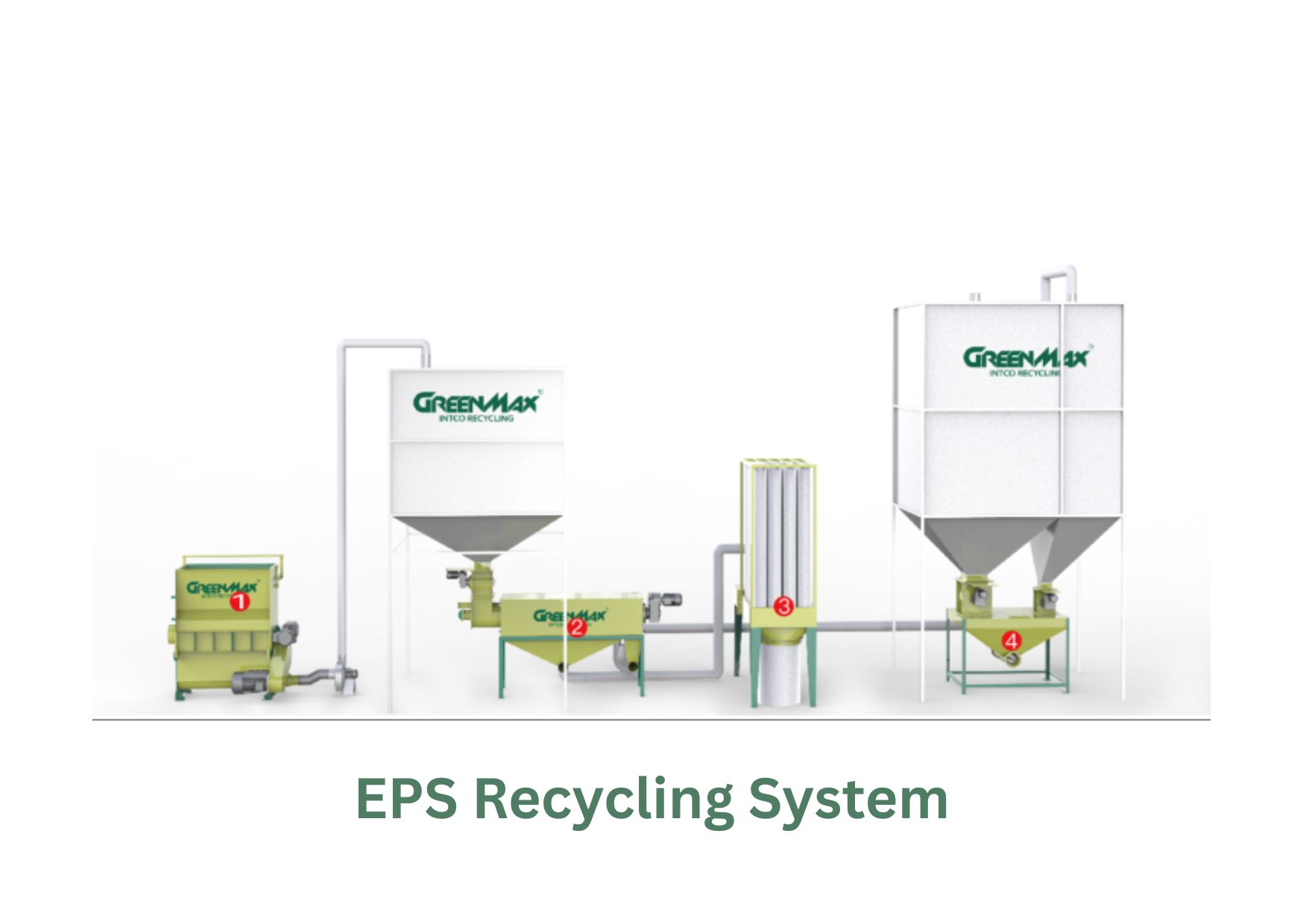

The process of EPS recycling system

By putting EPS waste into the crusher of the EPS recycling system, you can get reusable and non-recyclable EPS beads that are mixed together. All EPS beads enter the first silo through the pipeline.
Reusable beads and non-recyclable beads pass through the De-duster of the EPS recycling system. There is a special screen in the device for screening beads. After De-duster processing, the reusable EPS beads will be separated from the non-recyclable beads.
After filtering through the screen in the previous step, the unreusable beads will enter the Dust-collector (No. 3).
At this point, the reusable EPS beads have entered the final Mixer and Silo (No. 4). We can see that the Silo at the end of the EPS recycling system is divided into two parts, one is the recycled EPS beads we got, and the other is the new EPS beads we collected. A part of Silo is used to hold new EPS beads materials and mixed with recycled EPS beads.

Why use GREENMAX EPS recycling system

New EPS materials are expensive, adding some recycled materials will help reduce production costs.
EPS is 100% recyclable. Use the EPS recycling system to reduce the environmental burden.
The world is advocating the application of recycled materials in plastic products, in line with the development of the times and in line with the ESG concept
EPS recycling system helps realize a closed economic loop and allows white pollution to regain its “self-worth”

Can GREENMAX EPS recycling machine help recycle non-recyclable EPS beads?

Of course, GREENMAX focuses on providing a total solution that can help recycle beads that cannot be used to manufacture EPS products. What needs to be made clear is that the beads that cannot participate in EPS manufacturing do not mean that they will become useless garbage. These beads can be recycled through other GREENMAX EPS recycling machines. After professional recycling steps, these EPS beads can be turned into photo frames, and other plastic products.

Specification

Crusher

Capacity	25-30m³/h
Dimension	1750x780x2012mm
Hopper Dimension	1320x325mm
Weight	850kg
Screen Mesh Size	8mm
Power	15kw

De-duster

Capacity	25-30m³/h
Dimension	3498x703x1955mm
Weight	600kg
Screen Mesh Size	2mm
Power	4.87kw

Dust-collector

Dimension	2310x950x3390
Power	7.5kw
Mixer Capacity	55-100m³/h
Dimension	1598x990x1724mm
Recommended mixing ratio	6-20%
Power	3.92kw
