EPS Recycling System

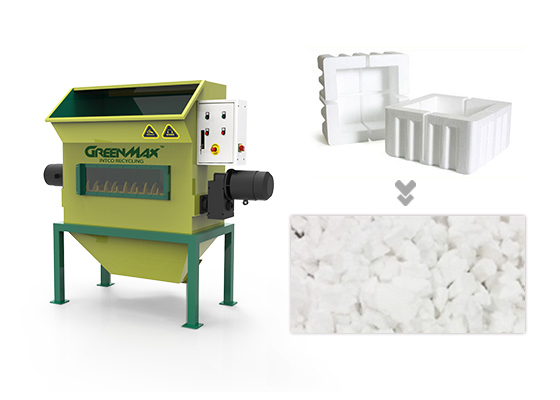

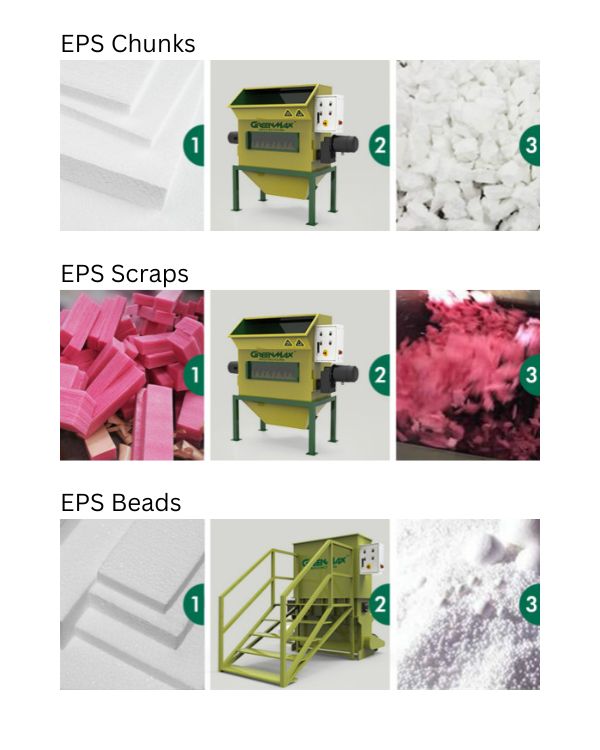

The EPS Foam Crusher is large-scale equipment specifically for recycling EPS beads. The ultimate recycling purpose of the EPS recycling system is to first break waste EPS into EPS beads, which are the “monomers” that make up EPS
Then we separate the reusable EPS beads and non-reusable EPS through the EPS recycling system. The beads are separated, and finally the recycled EPS beads are mixed with new EPS materials to create new EPS products.
Machine dimensions
3680*570*2020(l/w/h) mm
Power Consumption
10.25 kw
Capacity
100 kg / h
Take the first step toward a cleaner, more cost-effective business environment by requesting a free, no-obligation quote today. At Compact, we specialize in helping businesses efficiently manage waste through tailored compaction and recycling solutions that significantly reduce disposal frequency and declutter your workspace. Whether you are looking to lower your operational costs, reduce the volume of your waste, or streamline your recycling logistics, our team will provide a transparent, competitive proposal designed to fit your specific requirements. Contact us now to discover how an optimized waste management strategy can deliver an immediate return on investment and a greener footprint for your company.
Advantages
- True demonstrated throughput – Converts to labour cost
- Relative power – Not power efficiency but total grunt to process reliably
- Quality of electrical componentry, machining, welding and motor/gearbox combinations.
- Robustness of construction, I.e. machine weight, material thickness, screw shaft diameter, extrudate orifice diameter, strength of chain drive.
- Highest reliability in the world with common parts
- Maintenance packages available at competitive rates.
Specification
Total Power Consumption | 10.25 kw / 13.75 hp |
Crusher Power Consumption | 2.2 kw / 2.95 hp |
Production Capacity | 100 kg per hour / 220 lbs per hour |
EPS Compression Ratio | 50:1 |
Compressed EPS Density | 200-400 kg/m3 / 337-674lbs/cubic yard |
EPS Block Dimensions | 300*300 (w/h) mm / 11.8*11.8 (w/h) in. |
Feed Hopper Door | 800*515 (l/w) mm / 31.5*20.3 (l/w) in. |
Dimensions | 3680*570*2020(l/w/h) mm / 144.9*22.4*79.5(l/w/h) in. |
Shipping Dimensions | Main part：2900*765*2230(l/w/h) mm / 114.2*30.1*87.8(l/w/h) in. Output chute：1220*510*640(l/w/h) mm / 48.0*20.1*25.2(l/w/h) in. |
Weight | 1500 kg / 3300 lbs |
